  • The Farmliner brand has been a firm favourite since 1980, when Farmliner tractors were first introduced to Australia. More than 35 years later, Farmliner is synonymous with great value farm equipment that will stand the test of time.

    Farmliner Farm Machinery

    TFX Mulcher


      Loading...

    Heavy-Duty 30 to 60hp Low-Body Mulcher with offset headstock is suitable for pasture mowing, vineyard, orchard and tree-crop prunings up to 30mm diameter, general grass cutting and control of small sapling re-growth.

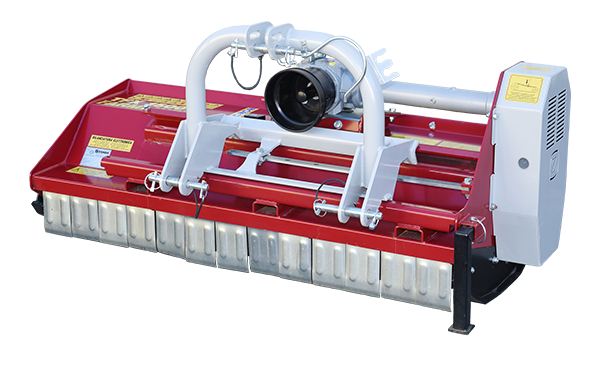

    TFX Low Body Mulcher

    Photograph for illustration purposes - standard specifications may not match those shown.

    FEATURES OF THE FARMLINER TFX MULCHER

    CONSTRUCTION

    • The tractor mulcher side walls are protected and reinforced by skids.
    • A parking stand to hold the machine level in storage.

    3-POINT LINKAGE HITCH

    TFX Construction
    • Category 1 & 2 headstock is mounted to slide rail.
    • Slotted top link clevis provides for floating operation.
    • Mulcher is manually offset on the sliding rail from central to right-hand side offset position, ideal for mulching under trees and along side fencing.

    TRANSMISSION

    TFX gear box
    • Fitted with the Italian made gearbox and side-drive.
    • Gearbox input is 540 PTO rpm.
    • The oil bath gearbox has a breather and level plug for routine checks.
    • The integrated free-wheel in the gearbox allows for safe mulcher wind-down when stopped without driving through the gear box and PTO drive shaft.
    • The gearbox, driveline, body and rotor are rated to 60 hp.

    ROTOR

    • Electronically balanced and 114mm diameter rotor with helical cutting system.
    TFX end cover plate
    • Bearings protected by end cover plate.
    TMU Hammers
    • Rotor is fitted standard with RM33 hammers to effectively mulch prunings and woody vegetation.
    • The hammers spin through 420mm diameter circle at 2250rpm with a 49 metre/sec tip speed (176km/h) for superior mulching power.
    • The hammer is forged, heat treated and hardened from high-grade steel.
    • The hanging bolt is embedded into the hanging point for protection and to prevent spinning and unnecessary wear.
    • The use of genuine blades, hammers and bolts are essential for safety, performance and protection of the mulcher.

    MULCHING CHAMBER

    TFX Clearance
    • Low body design
    • Counter blades resist the flow of larger material allowing hammers to produce a finer mulch.
    • The combination of hammers and counter blades working together to produce an excellent mulching environment for grass and prunings.
    TFX Rear Door
    • Openable rear door allows for easy access to inspect and replace hammers / blades.

    ROLLER

    TFX Skids
    • Skids provide primary protection of the body end plates and are not intended to be the means of height control.
    • Mulcher height is set by the self-cleaning rear roller of 114mm diameter with scraper bar.

    APPLICATIONS

    • Clearing small wooded regrowth
    • Pasture grass
    • Orchards/vineyards
    • Prunings up to 30mm

    OPTIONS

    TMU Knives with Centre Blade
    • Y-blades in lieu of hammers.
    • Rear wheel kit in lieu of rear roller.
    • Automatically retracting inter-row mowing head for mulching along vines and orchard trees.

    SPECIFICATIONS

    TFX 1500
    TFX 1700
    Working Width (m)
    1.50
    1.70
    Overall Width (m)
    1.65
    1.85
    Number of Drive Belts
    3
    3
    Number of Hammers
    22
    24
    Offsettable
    Yes
    Yes
    Weight (kg)
    335
    365
    Tractor Power (hp)
    30-60
    35-60

    BROCHURE

    Click this link to download a brochure. Please note that Australian specifications may vary to those shown on the manufacturer's brochure and website.

    Disclaimer: Specifications and features described on the website are subject to change without notice. All care has been taken to present accurate information, however, the company is not liable for unintended errors or omissions.
