    Farmliner Farm Machinery

    Star 350-9 Rotary Rake

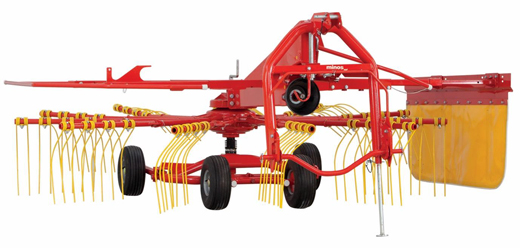

    Farmliner Star 350-9 Rotary Rake

    Photograph for illustration purposes - standard specifications may not match those shown.

    FEATURES OF THE STAR 350-9 ROTARY RAKES
    • PTO drive shaft with torque limiter
    • Closed cam track gearbox in oil bath
    • 9 arm/36 tine rake rotor
    • Removable arms for road transport
    • Transport locking system for safety
    • Curtain with adjustable position
    • Tandem wheels on walking beam for better ground contours
    • Pivoting headstock allows raking while turning (optional)

    HEADSTOCK
    Star 350-9 Rotary Rake Pivoting Linkage
    • Hitch - Pivoting headstock allows the rake to follow the tractor more easily and continue raking while turning.
    • Stabiliser - The stabiliser dampens machine shake while raking.
    • Stabilisers hold the rake rigidly when raised for transport.
    • PTO shaft with torque limiter.
    • Floating arms - Category 1 and 2 lower linkage arms are floating to allow tractor/rake coupling to better follow ground contours.

    GROUND CONDITIONS
    Star 350-9 Rotary Rake Tandem Axle
    • Walking Tandem Axle - tandem axle system enables less rotor oscillation when crossing bumps and contours. By maintaining accurate tine height above ground contours, the STAR rake gives faster, cleaner raking reducing ground contact or leaving crop behind.

    RAKING ARMS
    Star 350-9 Adjustable tines
    • Height adjustable spring tines.
    • Achieve high quality fodder with properly set and adjustable tines.
    • Stepless height adjustment with crank handle.
    Star 350-9 Adjustable Spring Tines
    • Tine arm angle is controlled with a bearing follower in a cam track.
    Star 350-9 Easily detachable tine arm
    • Detachable outer tine arm for rake transport.

    SWATH ADJUSTMENT
    SIP Rotary Rake Swath Adjustment
    • Working width adjustment
      The swath width is adjusted by the position of the curtain. The rotary rake offer a wide range of swath width to suit the pickup width of the baler or forage wagon.

    TRANSPORT
    Star 350-9 Rotary Rake Transport
    • The rake is ready for storage with all tine arms stowed in the transport position and the side curtain easily folded with spring assist.

    OPTIONS
    Star 350-9 Rotary Rake Option
    • Optional pivoting headstock top pin for raking of undulating fields.

    WARRANTY
    • Star 350-9 rotary rake have a 1 year factory warranty for peace of mind.

    SPECIFICATIONS

    		 STAR 350-9
    Number of Arms 9
    Tines per Arm 4
    Total number of tines 36
    Rotor diameter (m) 2.85
    Working width (m) 3.4-3.55
    Weight (kg) 405
    Transport width (m) 2.08
    Transport height (m) 1.53
    Minimum tractor power (hp) 45
    Tyres 15x6

    BROCHURE

    Click this link to download a brochure.
