CRV Vision 1 Trimmer
|
The CRV Vision-1 trimmer is a single sided over row trimmer for vineyards. Italian made by Rinieri company; a specialist pruner manufacturer.

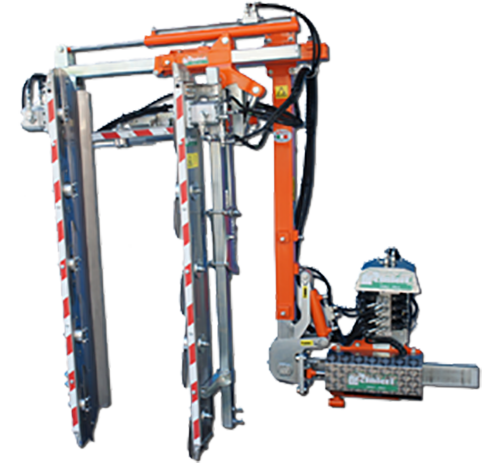

Photograph for illustration purposes - standard specifications may not match those shown. |
FEATURES OF THE FARMLINER CRV VISION 1 PRUNER
Contstruction
- Side post for clear central vision ahead
- Modular construction suits various cutting heads and options
- Heavy duty construction
- Mounting bracket adapted to suit tractor front weight mount
- Simple hydraulic mounting and dismounting
- Storage stand
Cutters
- Over-row trimmer with rotary blade cutter bar
- Alternatively available with: Sicklebar cutter bars, Barrel pruner, Suction leaf remover, Skirt cutters, Lower sucker remover
Hydraulics
- Requires 25-35 Litres/minute hydraulic flow
- Optional PTO hydraulic pack available
- Proportional electro-hydraulic control of all functions
- Controlled by Joystick with 4+1 functions
- 30cm side shift
- 0–15o post angle
- 60cm height shift
- 11 o cutter angle
- Push button on-off control of cutting head
SPECIFICATIONS |
CRV-Vision 1 |
| A Vertical cutter bars (m) | 1.75 |
| B Top cutter bars (m) | 0.75 |
| C Narrowest cutting position (m) | 0.7 |
| C Widest cutting position (m) | 1.2 |
| D Minimum vineyard row spacing (m) | 1.8 |
| D Maximum vineyard row spacing (m) | 3.5 |
| Weight (kg) | 220-280 |
| Hydraulic oil flow required (L/min) | 25-35 |
|
|
BROCHUREClick this link to download a brochure.Please note that Australian specifications may vary to those shown on the manufacturer's brochure and website. Follow this link to the manufacturer's website (Rinieri) |
|
|
Disclaimer: Specifications and features described on the website are subject to change without notice. All care has been taken to present accurate information, however, the company is not liable for unintended errors or omissions. |
|
