Farmliner Farm Machinery

CRL Vision 1 Pruner

The CRL Vision 1 Pruner is a single sided over row pruner designed for over row pruning of vineyards and blueberries.

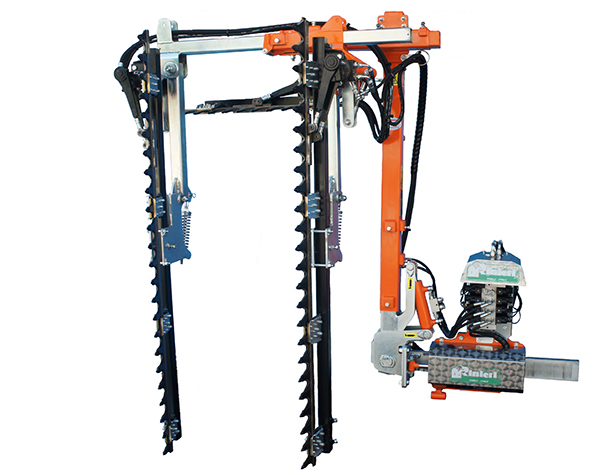

Photograph for illustration purposes - standard specifications may not match those shown.

FEATURES OF THE FARMLINER CRL VISION 1 PRUNER

Contstruction

Side post for clear central vision ahead
Modular construction suits various cutting heads and options
Heavy duty construction
Mounting bracket adapted to suit tractor front weight mount
Simple hydraulic mounting and dismounting
Storage stand

Cutters

Over-row Sickle Bar Pruner with individually replaceable knives.
Alternatively available with: Trimmer disc cutter bars, Barrel pruner, Suction leaf remover, Skirt cutters, Lower sucker remover

Hydraulics

Requires 20-30 Litres/minute hydraulic flow
Optional PTO hydraulic pack available
Proportional electro-hydraulic control of all functions
Controlled by Joystick with 4+1 functions
- 30cm side shift
- 0–15o post angle
- 60cm height shift
- 11 o cutter angle
- Push button on-off control of cutting head

SPECIFICATIONS	CRL-Vision 1
A Vertical cutter bars (m)	1.8
B Top cutter bars (m)	0.8
C Narrowest cutting position (m)	.65
C Widest cutting position (m)	1.15
D Minimum vineyard row spacing (m)	1.8
D Maximum vineyard row spacing (m)	3.5
Weight (kg)	230-260
Hydraulic oil flow required (L/min)	20-30

Vertical Cutter Bars
Top Cutter Bars
Cutting Position
Vineyard Row Spacing

BROCHURE

Click this link to download a brochure. Please note that Australian specifications may vary to those shown on the manufacturer's brochure and website.

Please note that Australian specifications may vary to those shown on the manufacturer's brochure and website.
Follow this link to the manufacturer's website (Rinieri)

Disclaimer: Specifications and features described on the website are subject to change without notice. All care has been taken to present accurate information, however, the company is not liable for unintended errors or omissions.
