FEATURES AND SPECIFICATIONS OF THE GALLIGNANI 6690 SQUARE BALER

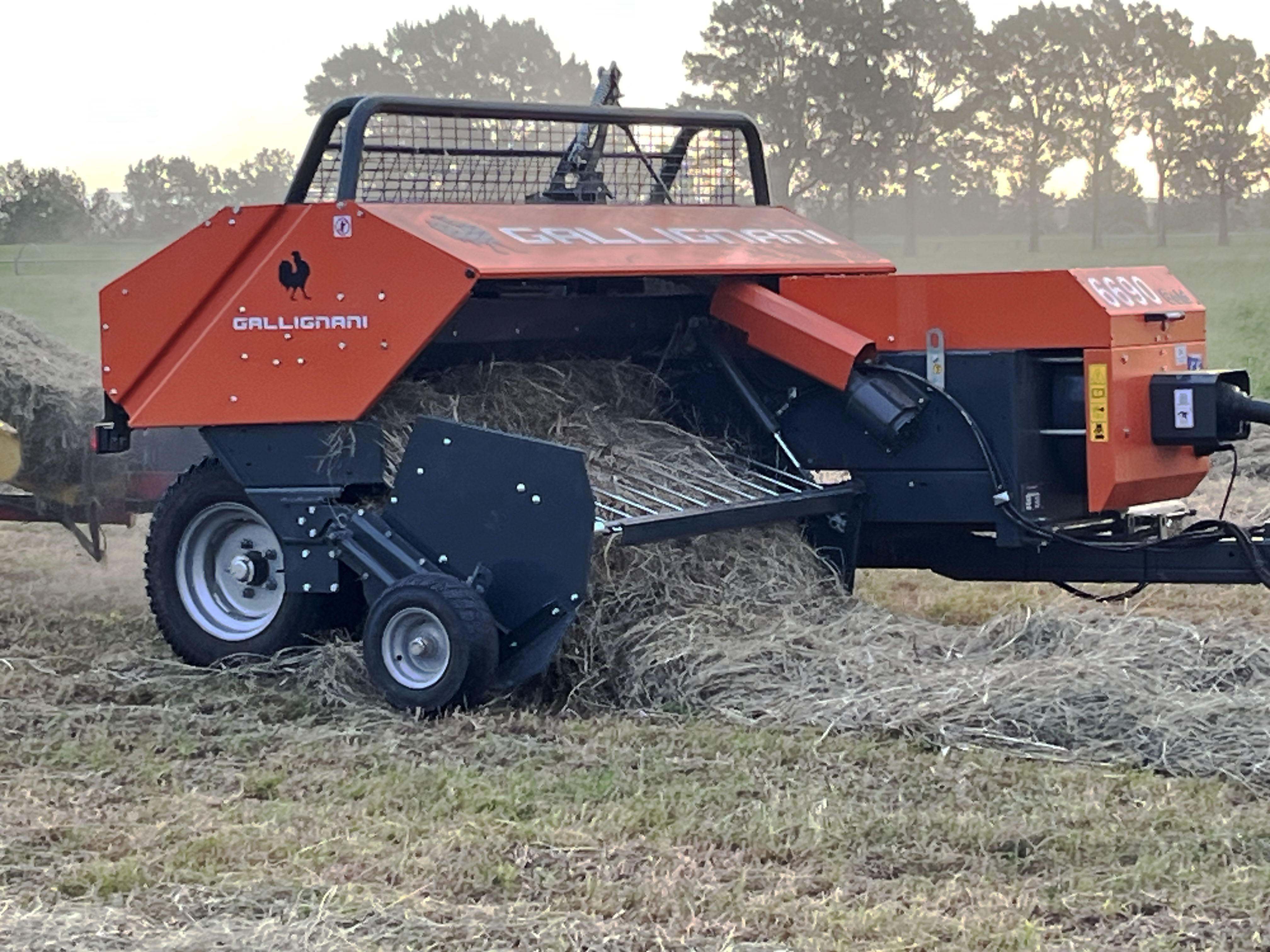

PICKUP

• 1.78 meter wide pickup
• 5 tine bars
• 21 tines per bar
• Intertooth gap – 70mm
• Bearing type cam track
• Pivoting crop deflector plate
• Mechanical pickup lift system
• Pick up wheel

CHAMBER INFEED

• Crank Feeder Inner - 3 tines (forks) with auto reset spring system
• Crank Feeder Outer - 2 tines (forks) with shear bolt protection
• Excellent vision
• Large crop capacity

COMPRESSION CHAMBER

• 36cm x 46cm chamber cross section
• Piston work rate 92 strokes per minute @ 540 PTO
• Piston work rate 104 strokes per minute @ 610 PTO Max
• Piston guides on bearings
• Manual bale tension system

KNOTTERS

• Chain driven knotter system with shear bolt protection
• Proven, Simple, Strong and Reliable
• Double notter fan
• Twine type
• Bale counter
• Greasable

TRANSMISSION

• Fly Wheel – 60 m diameter, 123 kg with Shear bolt protection
• Gearbox, Chain, Pulley and Belt System
• Wide angle PTO shaft with double universal joint and clutch standard
